切斷刀
產品名稱:切斷刀
產品型號:0
inserts for parting off , straight cut
產品型號:0
inserts for parting off , straight cut
產品介紹
|
Inserts |

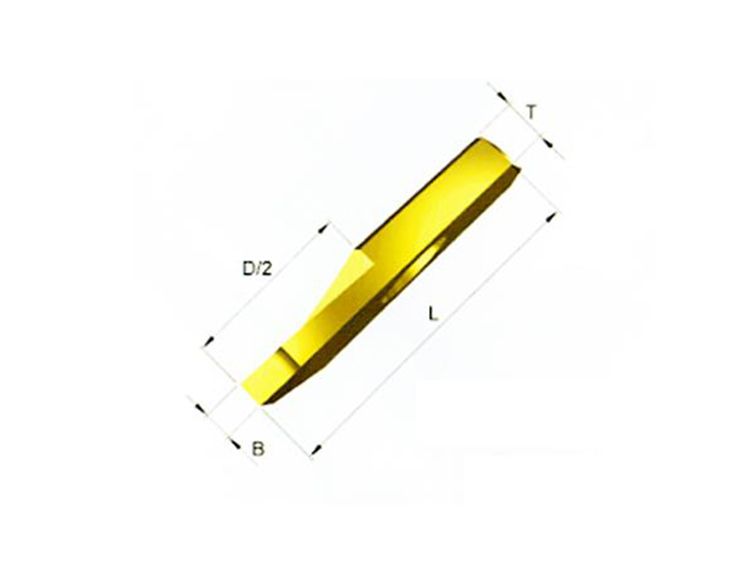

B | MAX-D | V | Cutting Rake | Stock | ||
|---|---|---|---|---|---|---|---|
| 8M | C8 | F8 | |||||
| K15ER/L P1.0-12 | 1,0 | 10 | 0 | 12 | r | a | r |
| K15ER/L P1.2-12 | 1,2 | 12 | 0 | 12 | b | a | b |
| K15ER/L P1.5-12 | 1,5 | 12 | 0 | 12 | r | a | r |
| K15ER/L P2.0-12 | 2,0 | 12 | 0 | 12 | r | a | r |
| K20ER P1.5-12 | 1,5 | 16 | 0 | 12 | b | r | b |
| K20ER P2.0-12 | 2,0 | 20 | 0 | 12 | b | r | b |
| K20ER P2.5-12 | 2,5 | 20 | 0 | 12 | b | r | b |
| K20ER P3.0-12 | 3,0 | 20 | 0 | 12 | b | r | b |
RIGHT HAND TOOLHOLDER SHOWN , LEFT HAND SHOULD BE CODED WSJ15EL
